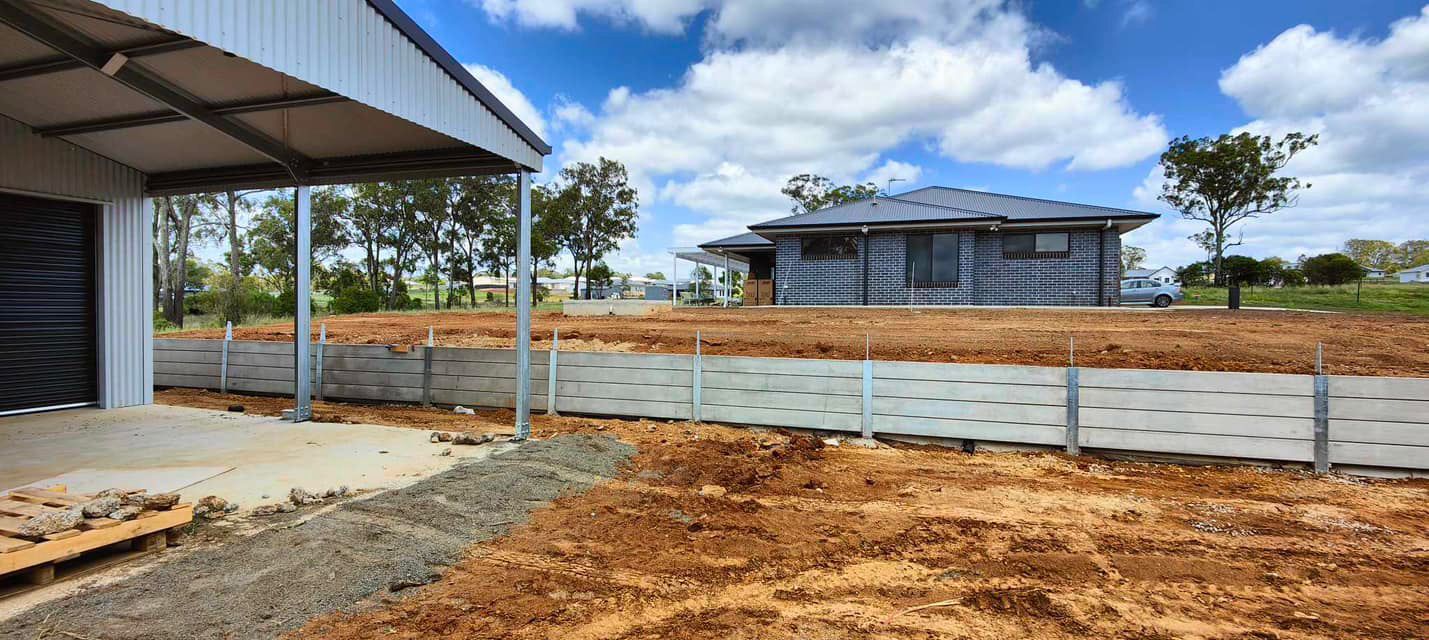

Description | Dimensions | ||||
---|---|---|---|---|---|

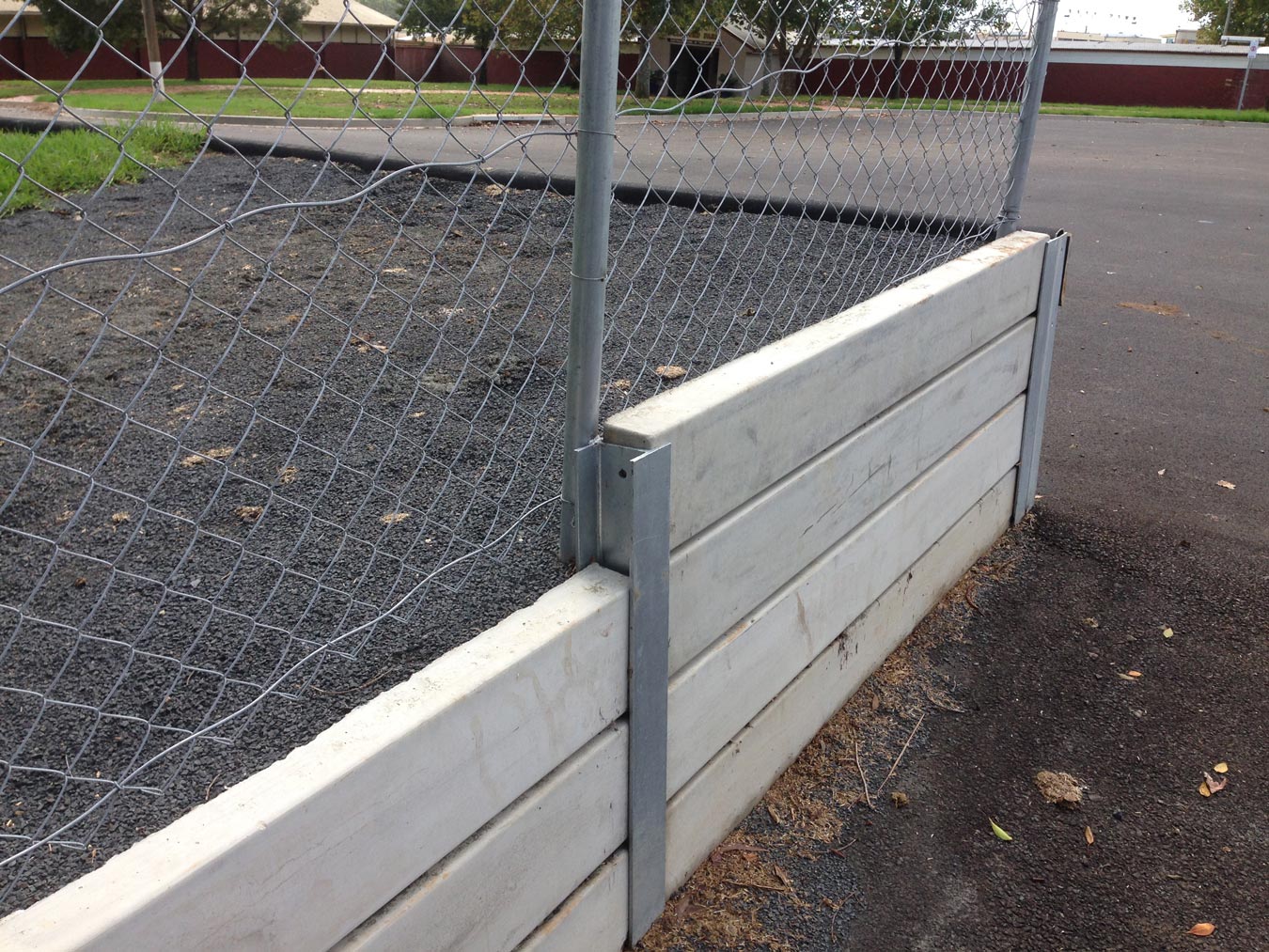

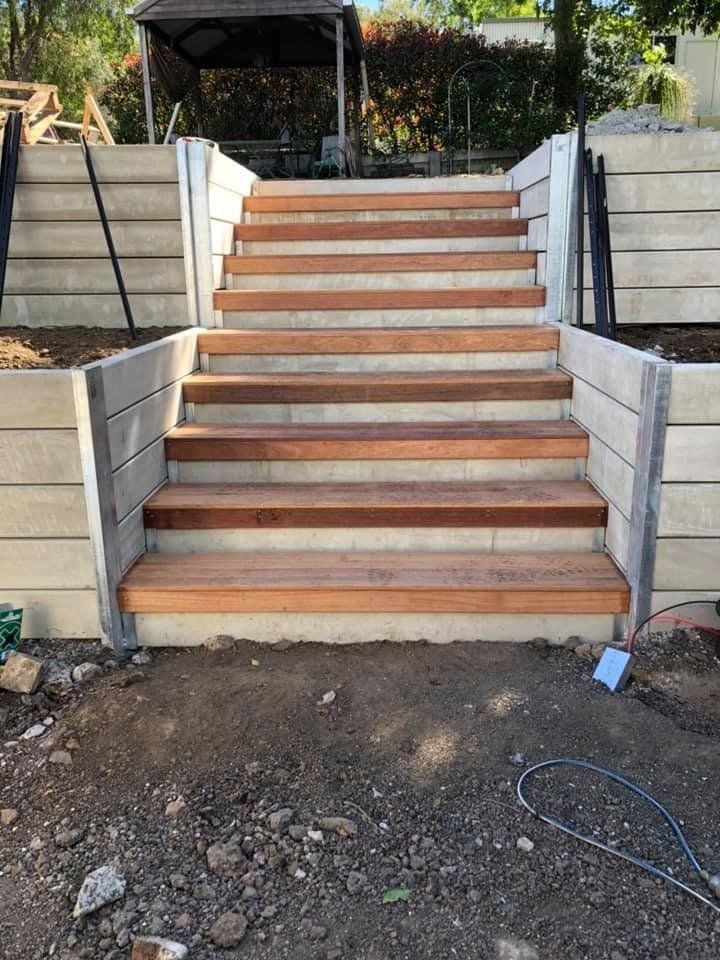

Plain Smooth | Length | Height | Thickness | Weight | Lifting Eye |

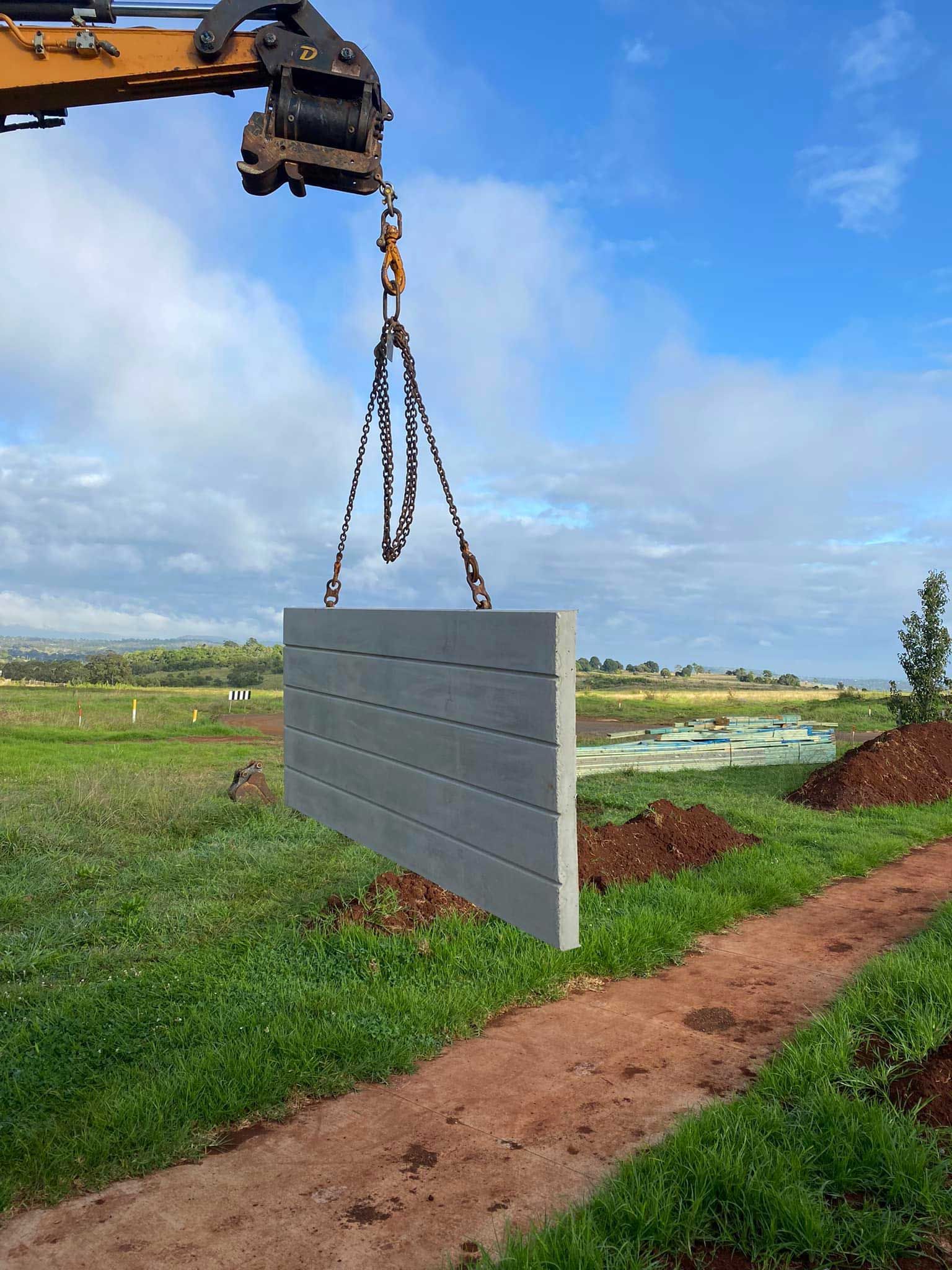

Panel 1m long | |||||
1 sleeper high (200mm) | 980mm | 200mm | 80mm | 37kg | 1 x 1.3t |
2 Sleepers high (400mm) | 980mm | 400mm | 80mm | 75kg | 1 x 1.3t |
3 Sleepers High (600mm) | 980mm | 600mm | 80mm | 113kg | 1 x 1.3t |
4 Sleepers High (800mm) | 980mm | 800mm | 80mm | 150kg | 1 x 1.3t |
5 Sleepers High (1000mm | 980mm | 1000mm | 80mm | 188kg | 1 x 1.3t |
Panel 1.5m long | |||||
1 sleeper high (200mm) | 1480mm | 200mm | 80mm | 57kg | 1 x 1.3t |
2 Sleepers high (400mm) | 1480mm | 400mm | 80mm | 114kg | 2 x 1.3t |
3 Sleepers High (600mm) | 1480mm | 600mm | 80mm | 170kg | 2 x 1.3t |
4 Sleepers High (800mm) | 1480mm | 800mm | 80mm | 227kg | 2 x 1.3t |
5 Sleepers High (1000mm) | 1480mm | 1000mm | 80mm | 284kg | 2 x 1.3t |
Panel 2m long | |||||
1 sleeper high (200mm) | 1980mm | 200mm | 80mm | 75kg | 1 x 1.3t |
2 Sleepers high (400mm) | 1980mm | 400mm | 80mm | 150kg | 2 x 1.3t |
3 Sleepers High (600mm) | 1980mm | 600mm | 80mm | 225kg | 2 x 1.3t |
4 Sleepers High (800mm) | 1980mm | 800mm | 80mm | 300kg | 2 x 1.3t |
5 Sleepers High (1000mm) | 1980mm | 1000mm | 80mm | 375kg | 2 x 1.3t |
Panel 2.4m long | |||||
1 sleeper high (200mm) | 2380mm | 200mm | 80mm | 92kg | 1 x 1.3t |
2 Sleepers high (400mm) | 2380mm | 400mm | 80mm | 183kg | 2 x 1.3t |
3 Sleepers High (600mm) | 2380mm | 600mm | 80mm | 274kg | 2 x 1.3t |
4 Sleepers High (800mm) | 2380mm | 800mm | 80mm | 366kg | 2 x 1.3t |
5 Sleepers High (1000mm) | 2380mm | 1000mm | 80mm | 457kg | 2 x 1.3t |
